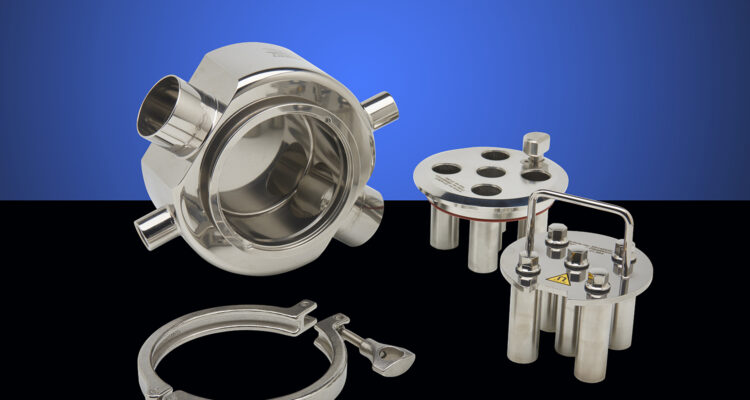

The range of magnetic filters that Goudsmit Magnetics has been manufacturing for several years has recently been expanded with a modular, double-wall chocolate filter. The magnetic filter produced according to EHEDG guidelines is composed of Neodymium magnets that ensure effective separation of very small iron particles from 30μm, weakly magnetic particles and even iron dust from sticky substances such as chocolate. The hygienic filter can be seen on the Powtech in Nuremberg, position 3-634. In the new design, the housing is not welded but made of one piece -RVS 316-. The new design prevents the heated liquid, e.g. water, from entering the product channel. This water flows through the outer wall of the filter and keeps the chocolate liquid. In the fully modular design, a standard filter vessel of choice can be an ISO or a DIN pipe. This makes the filter easy to integrate into existing installations and also suitable for all couplings. The system fully meets the highest possible requirements within the food industry, such as HACCP and EHEDG.
This is how the magnetic filter works.
